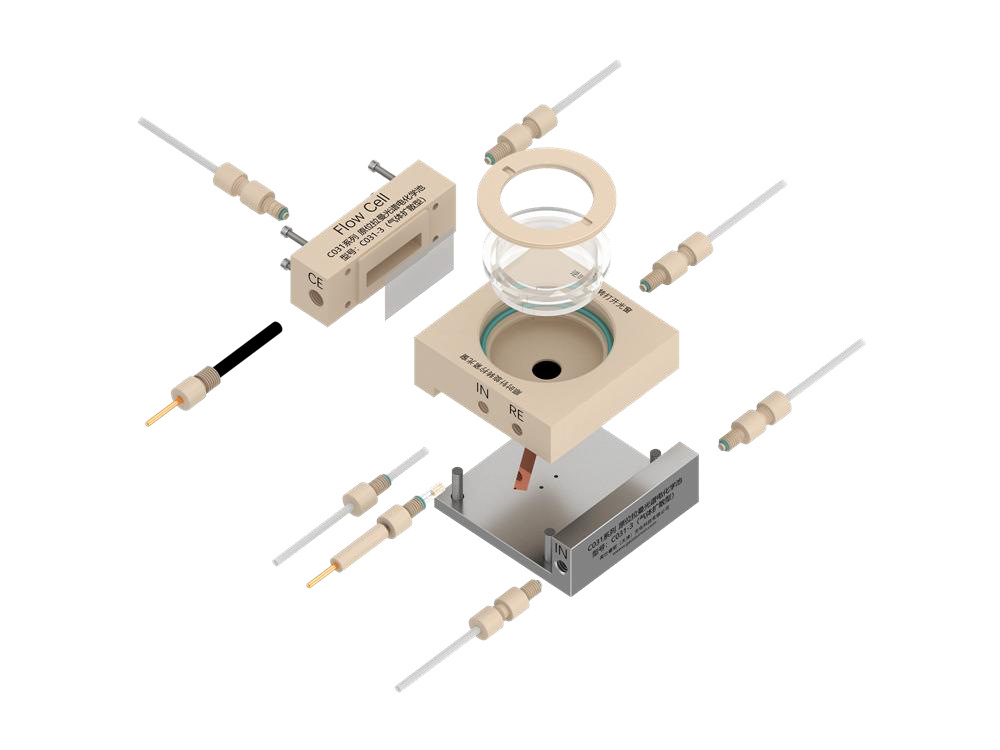

C031-3 Gas-Diffusion Raman Cell

Product overview

The C031-3 combines optical access to the working surface with a gas channel below the cathode compartment. The catalog describes membrane-separated compartments and flow operation. Define the gas-diffusion electrode, membrane and flow connections together so the optical experiment and the electrochemical assembly can be reviewed as one setup.

Specifications & ordering details

Use these parameters to define your requirement. The quotation confirms the exact supplied specification.

Material / system	Gas-diffusion cell arrangement with quartz window
Catalog model	C031-3
Optical window	Quartz; 37 mm diameter
Standard working area	1 cm²
Electrode-to-window distance	Less than 6 mm
Gas arrangement	Gas channel below the cathode compartment
Active area and flow-field design	Specify with your requirement.
Plate / current-collector materials	Specify with your requirement.
Connections and included accessories	Specify with your requirement.

Research applications

Gas-diffusion spectroelectrochemistry
In-situ Raman electrode studies
Flow-dependent catalyst evaluation

Before you order

Specify the gas stream and gas-diffusion electrode.
Include the membrane and working-electrode materials, listed separately in the catalog.
Confirm window access, active area and flow interfaces.

Product documents

View the source catalog for this offering. Share your grade, model and application to request the relevant specification or material documentation.

View Electrochemistry, Flow & MEA Systems — page 6 ↗Download PDF

Selection questions

What should a custom enquiry include?

For C031-3 Gas-Diffusion Raman Cell, provide the active area, sample or electrode geometry, materials, interfaces and the operating conditions. Include drawings and identify every component in the assembly scope.

Are electrodes, membranes and accessories included?

Specify the parts required. Hardware, membranes, electrodes, gaskets, fittings and instruments should be identified separately in the quotation.
