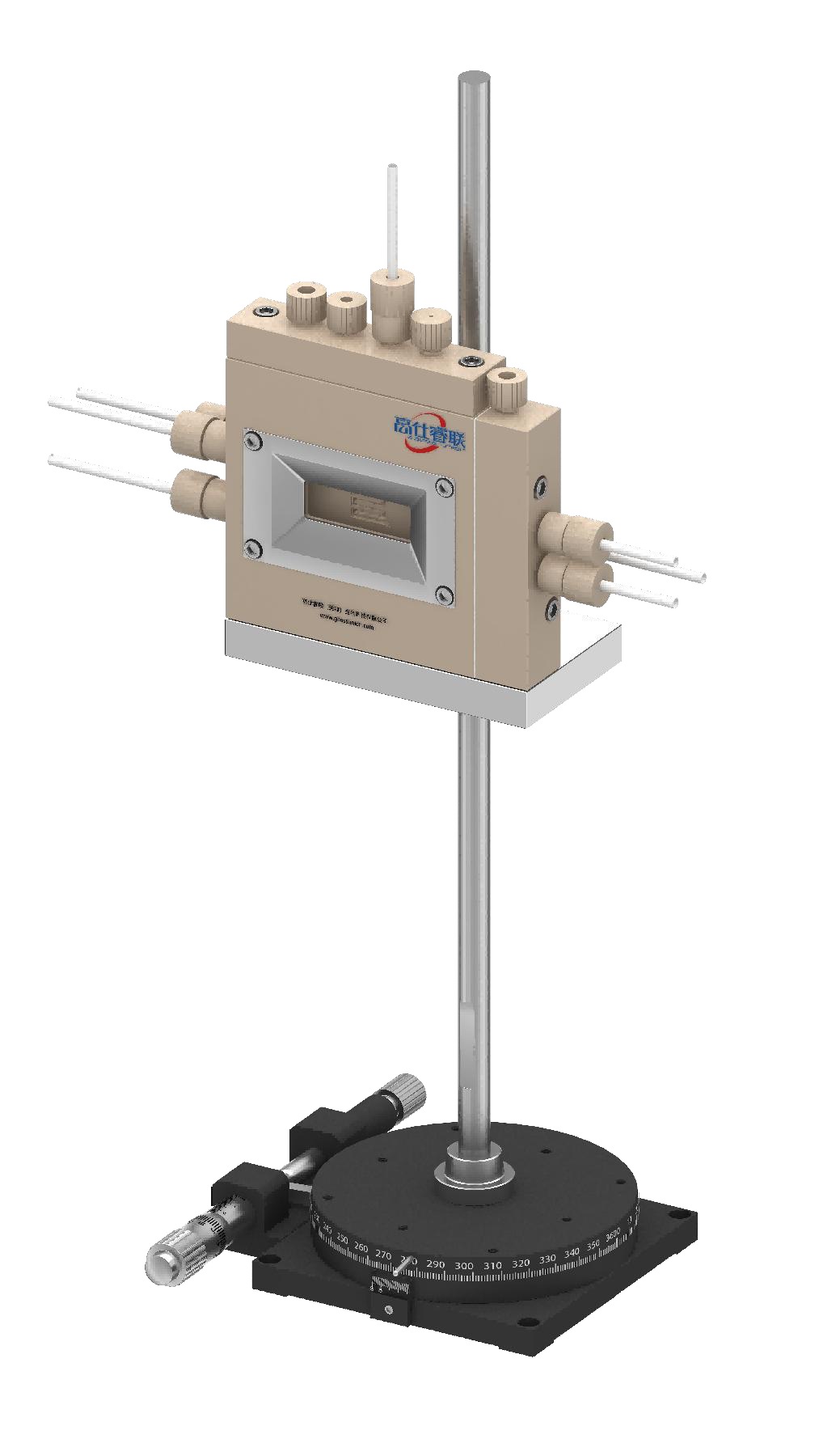

XAFS-4 Gas-Diffusion Reaction Cell

Product overview

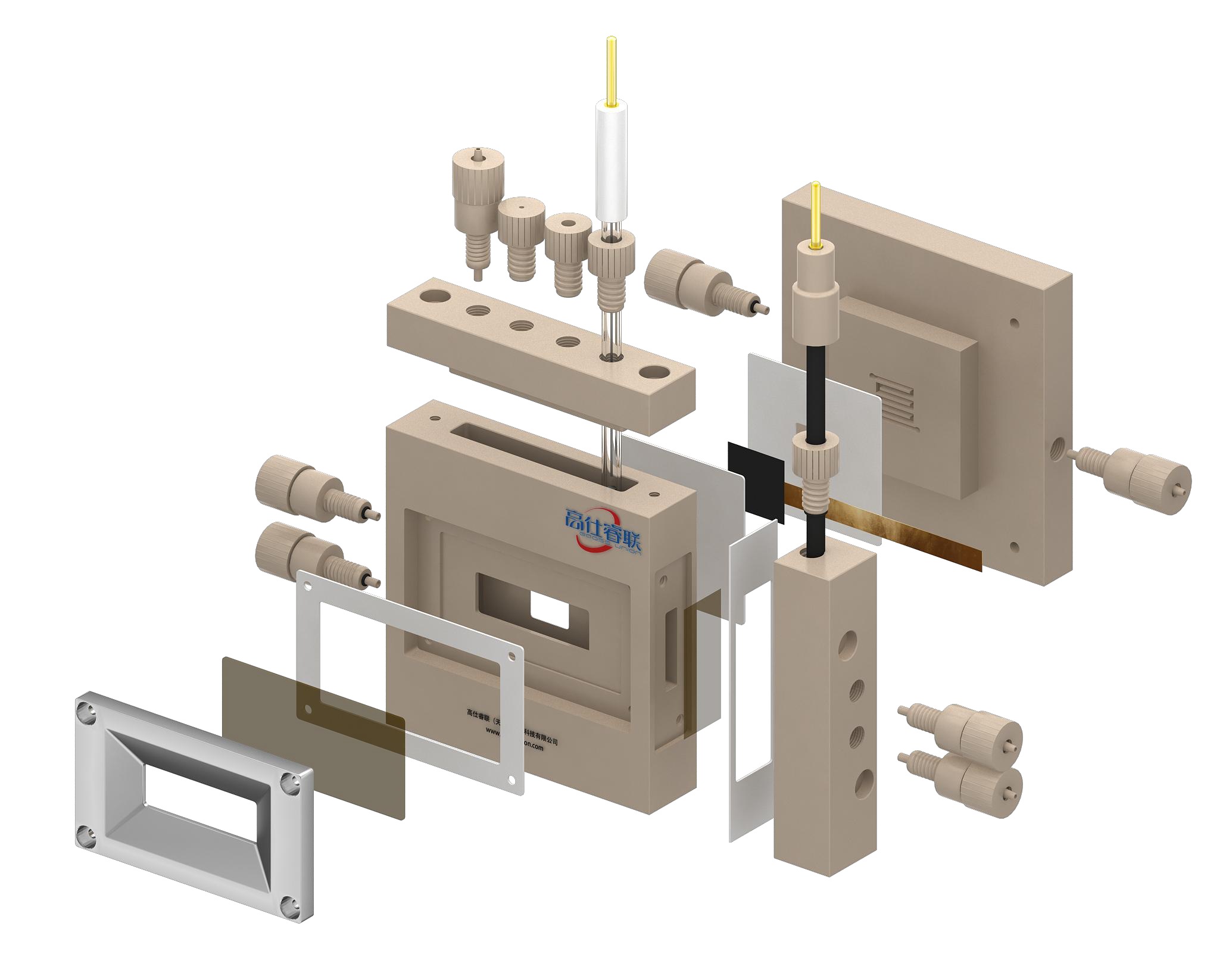

XAFS-4 is the gas-diffusion version of the X-ray absorption cell range. The catalog describes a wide-angle Kapton window and a gas-diffusion chamber that can be exchanged for a transmission chamber. Define the gas-diffusion electrode, membrane and beamline alignment together. Chamber interchangeability is a configuration requirement to confirm in the quotation, rather than a claim that every chamber is supplied as standard.

Specifications & ordering details

Use these parameters to define your requirement. The quotation confirms the exact supplied specification.

Material / system	Gas-diffusion XAFS cell; Kapton window
Catalog model	XAFS-4
Reaction arrangement	Gas diffusion
Window material	Kapton
Catalog observation angle	120°
Chamber option	Replaceable gas-diffusion / transmission arrangement
Instrument and optical / beam geometry	Specify with your requirement.
Sample, electrode and window requirements	Specify with your requirement.
Connections and included accessories	Specify with your requirement.

Research applications

Gas-diffusion XAFS experiments
Electrocatalyst structural measurements
Configurable synchrotron cell studies

Before you order

Provide the beamline geometry and gas-diffusion electrode dimensions.
Specify membrane, gas ports and required chambers.
Confirm the window film and complete supplied assembly.

Product documents

View the source catalog for this offering. Share your instrument model, configuration and application to request the relevant specification or material documentation.

View Electrochemistry, Flow & MEA Systems — page 15 ↗Download PDF

Selection questions

How do I check the instrument interface?

Share the instrument make and model, sample geometry, optical or beam path, mounting arrangement and drawings. The cell and instrument interfaces must be reviewed together.

Which experimental conditions are needed?

Specify temperature, pressure, atmosphere or electrolyte, and electrical connections. Confirm sample access, windows, fittings and accessories for the selected method.
