101017-1.2 Windowed Gas-Diffusion Cell

Product overview

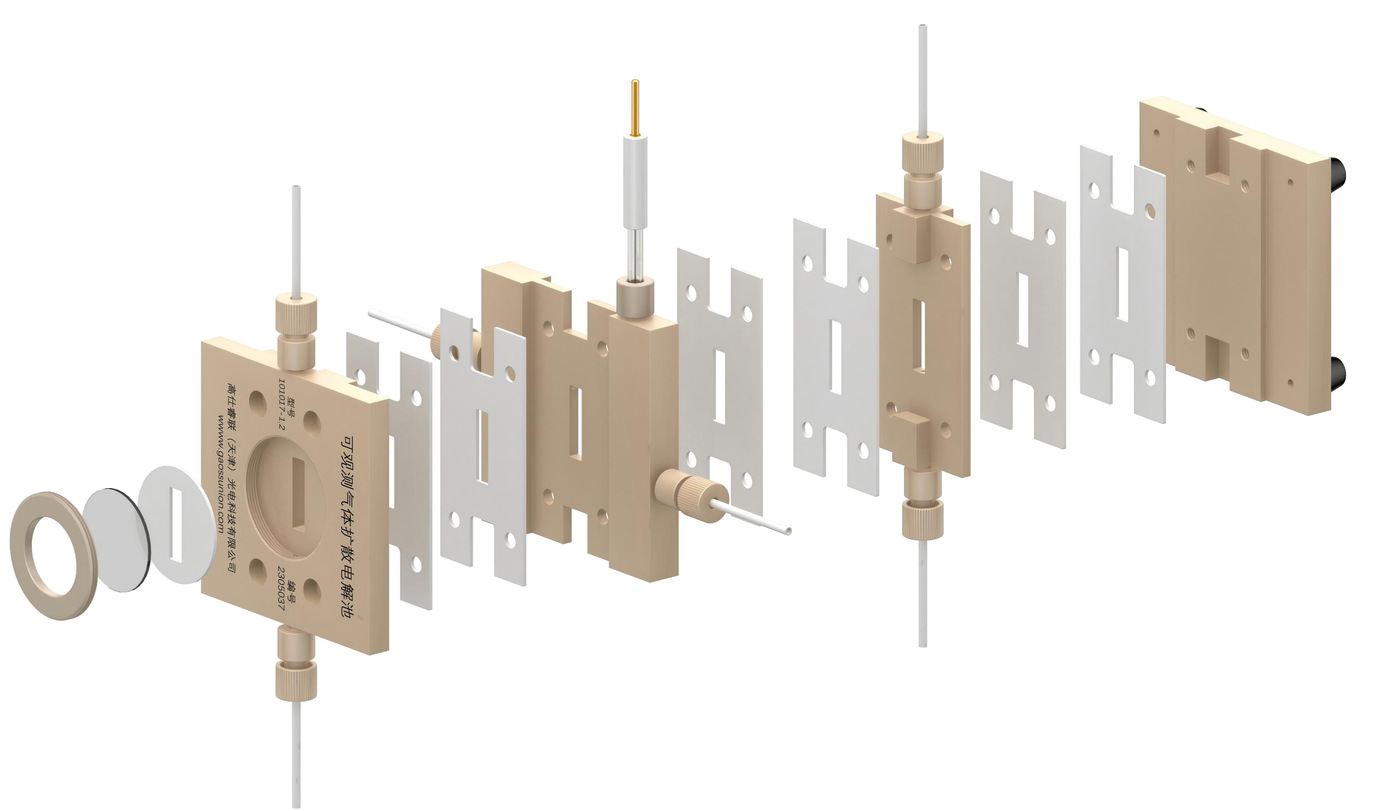

Model 101017-1.2 uses the windowed three-chamber arrangement with a 3 mm anode-to-cathode spacing. The catalog lists the same 1 cm² reaction area as the 101017-1 version. Confirm the shortened internal spacing, electrode dimensions and sealing arrangement when matching this version to an experimental protocol.

Specifications & ordering details

Use these parameters to define your requirement. The quotation confirms the exact supplied specification.

Material / system	PEEK; quartz observation window
Catalog model	101017-1.2
Body material	PEEK
Chamber dimension	5 × 20 mm
Reaction area	1 cm²
Anode-to-cathode spacing	3 mm
Observation window	High-purity quartz glass
Active area and flow-field design	Specify with your requirement.
Plate / current-collector materials	Specify with your requirement.
Connections and included accessories	Specify with your requirement.

Research applications

Short-gap gas-diffusion experiments
Flooding observation
Small-area electrolysis research

Before you order

Specify the 3 mm gap and complete model designation.
Confirm the electrode and membrane dimensions.
Provide gas/liquid connections and optical-access requirements.

Product documents

View the source catalog for this offering. Share your grade, model and application to request the relevant specification or material documentation.

View Electrochemistry, Flow & MEA Systems — page 39 ↗Download PDF

Selection questions

What should a custom enquiry include?

For 101017-1.2 Windowed Gas-Diffusion Cell, provide the active area, sample or electrode geometry, materials, interfaces and the operating conditions. Include drawings and identify every component in the assembly scope.

Are electrodes, membranes and accessories included?

Specify the parts required. Hardware, membranes, electrodes, gaskets, fittings and instruments should be identified separately in the quotation.
