101017-1 Windowed Gas-Diffusion Cell

Product overview

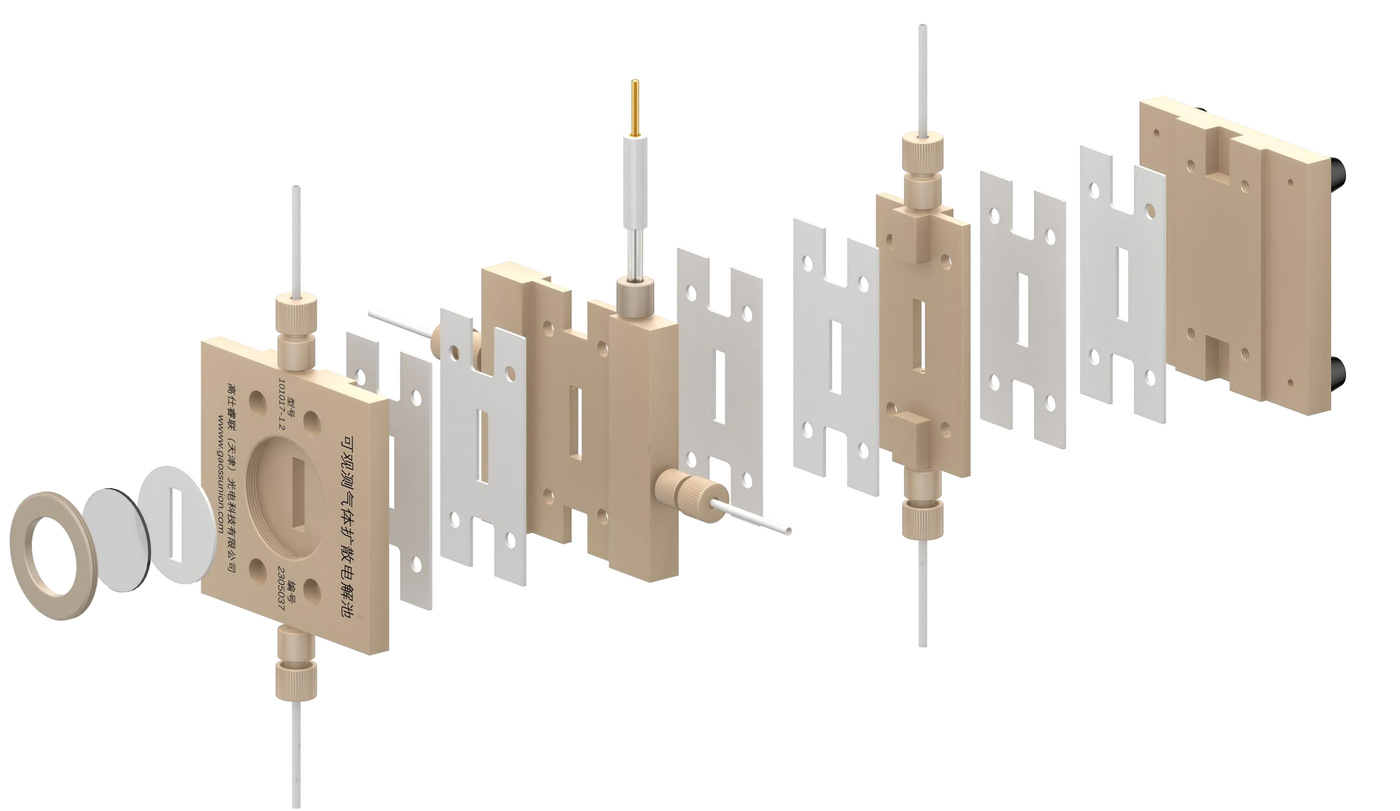

The 101017-1 adds a quartz flooding observation window to a three-chamber gas-diffusion arrangement. Its catalog geometry combines a 5 × 20 mm chamber with a 1 cm² reaction area. The spacing differs from model 101017-1.2, so include the full model designation when requesting a replacement or a matching configuration.

Specifications & ordering details

Use these parameters to define your requirement. The quotation confirms the exact supplied specification.

Material / system	PEEK; quartz observation window
Catalog model	101017-1
Body material	PEEK
Chamber dimension	5 × 20 mm
Reaction area	1 cm²
Anode-to-cathode spacing	7 mm
Observation window	High-purity quartz glass
Active area and flow-field design	Specify with your requirement.
Plate / current-collector materials	Specify with your requirement.
Connections and included accessories	Specify with your requirement.

Research applications

Flooding observation
Three-chamber gas-diffusion studies
Electrode and membrane evaluation

Before you order

Use the complete 101017-1 model number.
Confirm optical access to the quartz window.
Specify the electrodes, membrane and gas/liquid interfaces.

Product documents

View the source catalog for this offering. Share your grade, model and application to request the relevant specification or material documentation.

View Electrochemistry, Flow & MEA Systems — page 39 ↗Download PDF

Selection questions

What should a custom enquiry include?

For 101017-1 Windowed Gas-Diffusion Cell, provide the active area, sample or electrode geometry, materials, interfaces and the operating conditions. Include drawings and identify every component in the assembly scope.

Are electrodes, membranes and accessories included?

Specify the parts required. Hardware, membranes, electrodes, gaskets, fittings and instruments should be identified separately in the quotation.
