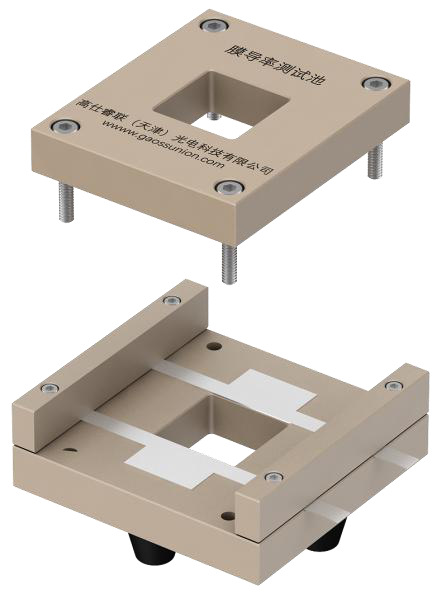

C034-1 Membrane Conductivity Test Cell

Product overview

The C034-1 clamps an ion-exchange or other solid membrane for a two-electrode conductivity measurement. Its catalog materials are PEEK and platinum sheets. Supply the sample thickness, dimensions and required contact arrangement, and confirm the measurement direction and instrument connections for your laboratory method before ordering.

Specifications & ordering details

Use these parameters to define your requirement. The quotation confirms the exact supplied specification.

Material / system	PEEK and platinum sheet contacts
Catalog model	C034-1
Fixture materials	PEEK and platinum sheets
Measurement arrangement	Two electrodes
Intended specimens	Ion-exchange membranes and other solid membranes
Active area and flow-field design	Specify with your requirement.
Plate / current-collector materials	Specify with your requirement.
Connections and included accessories	Specify with your requirement.

Research applications

Membrane conductivity research
Solid-membrane electrical measurements
Two-electrode fixture studies

Before you order

Provide membrane dimensions and thickness.
Confirm contact geometry and measurement direction.
Specify the impedance instrument and electrical interfaces.

Product documents

View the source catalog for this offering. Share your grade, model and application to request the relevant specification or material documentation.

View Electrochemistry, Flow & MEA Systems — page 60 ↗Download PDF

Selection questions

What should a custom enquiry include?

For C034-1 Membrane Conductivity Test Cell, provide the active area, sample or electrode geometry, materials, interfaces and the operating conditions. Include drawings and identify every component in the assembly scope.

Are electrodes, membranes and accessories included?

Specify the parts required. Hardware, membranes, electrodes, gaskets, fittings and instruments should be identified separately in the quotation.
