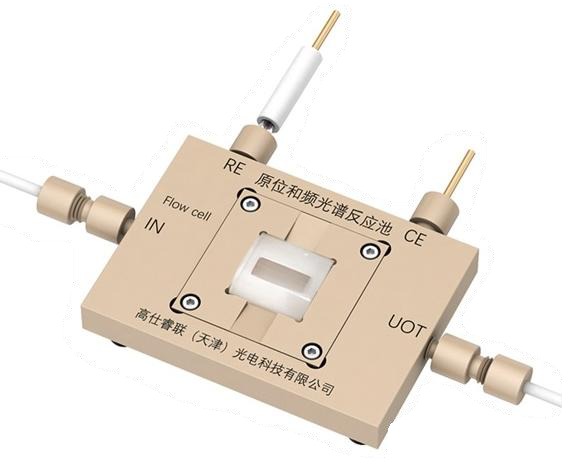

19008 Sum-Frequency Generation Electrochemical Cell

Product overview

Model 19008 provides an electrochemical sample environment for sum-frequency generation spectroscopy with electrolyte flow. The approved catalog gives an internal dimension of 20 × 5 × 5 mm and describes a working-electrode holder that can be adapted to the experiment. Specify the electrode geometry and optical access together; the cell does not include a spectroscopy instrument simply because it is used with that method.

Specifications & ordering details

Use these parameters to define your requirement. The quotation confirms the exact supplied specification.

Material / system	Flow-compatible spectroelectrochemical cell
Catalog model	19008
Internal cavity dimensions	20 × 5 × 5 mm
Measurement arrangement	Flow-phase measurement
Working-electrode holder	Configuration to be agreed for the experiment
Reference electrode options	Ag/AgCl or Ag, as listed in the catalog
Counter electrode	Platinum wire, as listed in the catalog
Active area and flow-field design	Specify with your requirement.
Plate / current-collector materials	Specify with your requirement.
Connections and included accessories	Specify with your requirement.

Research applications

In-situ sum-frequency generation spectroscopy
Flow spectroelectrochemical measurements
Electrode-interface research

Before you order

Provide the optical geometry and instrument interface.
Specify the working-electrode dimensions and holder.
Confirm the reference electrode, counter electrode, fittings and supplied scope.

Product documents

View the source catalog for this offering. Share your instrument model, configuration and application to request the relevant specification or material documentation.

View Electrochemistry, Flow & MEA Systems — page 16 ↗Download PDF

Selection questions

What should a custom enquiry include?

For 19008 Sum-Frequency Generation Electrochemical Cell, provide the active area, sample or electrode geometry, materials, interfaces and the operating conditions. Include drawings and identify every component in the assembly scope.

Are electrodes, membranes and accessories included?

Specify the parts required. Hardware, membranes, electrodes, gaskets, fittings and instruments should be identified separately in the quotation.
