C031-4 Disc-Electrode Raman Cell

Product overview

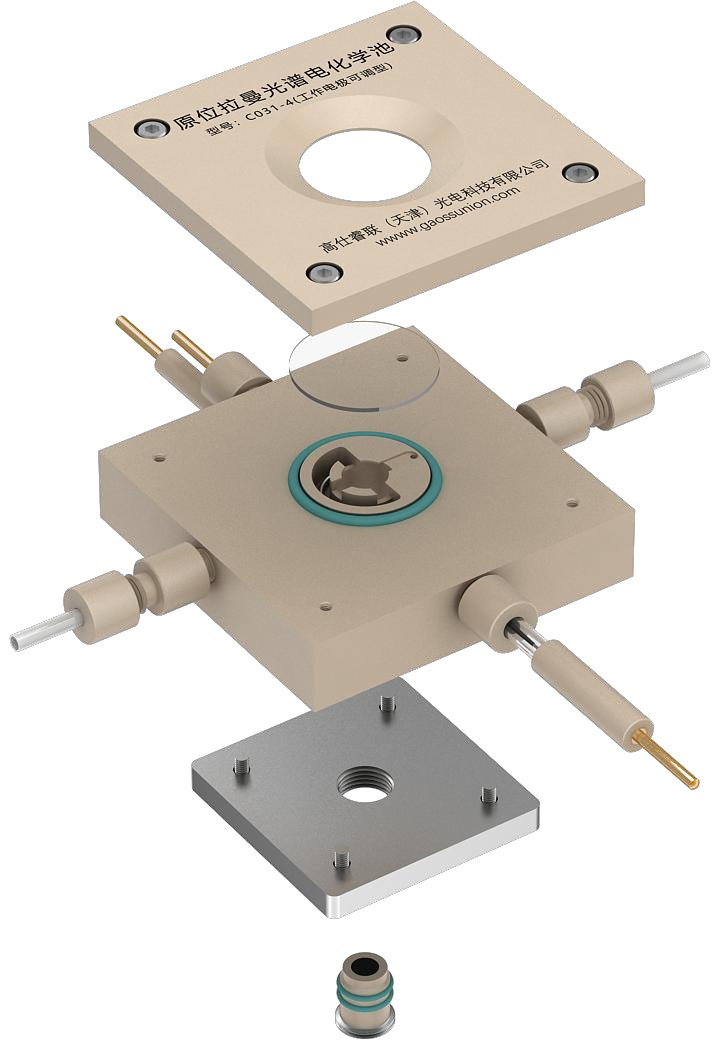

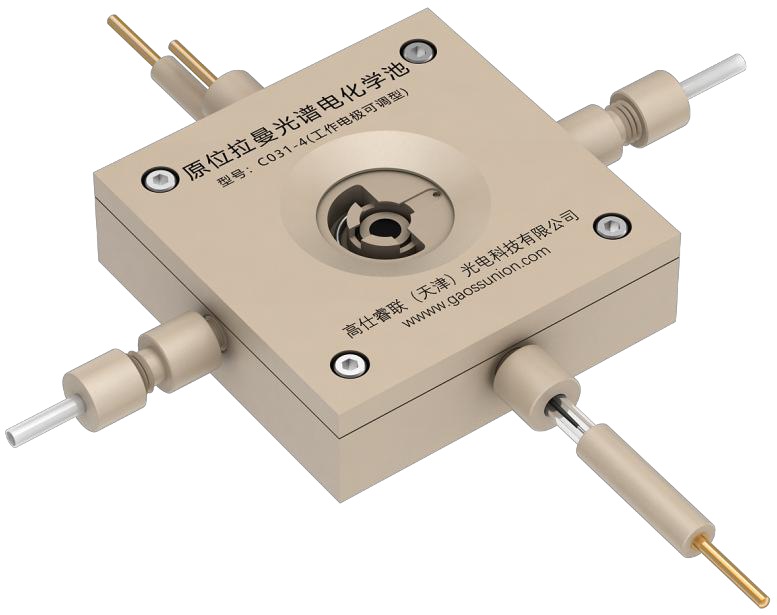

The C031-4 places a disc working electrode beneath the observation window in a PEEK and titanium assembly. The catalog describes a cell that opens for cleaning and can be filled or used with flowing electrolyte. Select the disc material and diameter along with the reference and counter electrodes; an alternative disc is a configuration choice to confirm in the quotation.

Specifications & ordering details

Use these parameters to define your requirement. The quotation confirms the exact supplied specification.

Material / system	PEEK and high-purity titanium
Catalog model	C031-4
Body materials	PEEK and high-purity titanium
Optical window diameter	25 mm
Electrode-to-window distance	Less than 3 mm
Standard working electrode	5 mm glassy-carbon disc
Instrument and optical / beam geometry	Specify with your requirement.
Sample, electrode and window requirements	Specify with your requirement.
Connections and included accessories	Specify with your requirement.

Research applications

Disc-electrode Raman measurements
In-situ electrode-surface studies
Flow spectroelectrochemistry

Before you order

Specify the disc material and exposed diameter.
Confirm the optical window and objective clearance.
Define flow fittings and the reference/counter electrode scope.

Product documents

View the source catalog for this offering. Share your instrument model, configuration and application to request the relevant specification or material documentation.

View Electrochemistry, Flow & MEA Systems — page 9 ↗Download PDF

Selection questions

How do I check the instrument interface?

Share the instrument make and model, sample geometry, optical or beam path, mounting arrangement and drawings. The cell and instrument interfaces must be reviewed together.

Which experimental conditions are needed?

Specify temperature, pressure, atmosphere or electrolyte, and electrical connections. Confirm sample access, windows, fittings and accessories for the selected method.
