C031-XRD Disc-Electrode Cell

Product overview

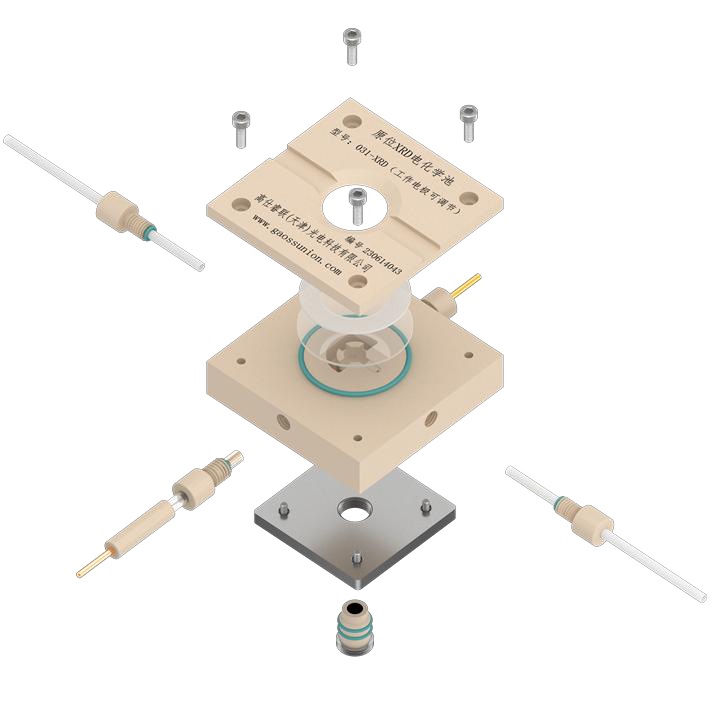

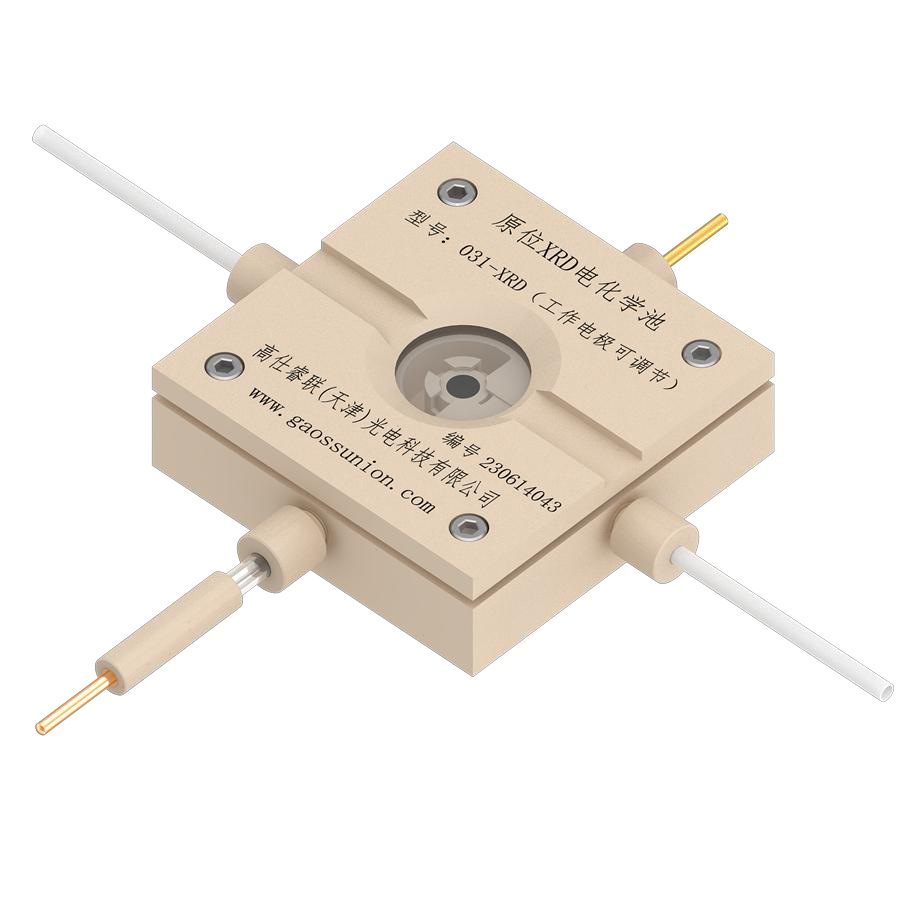

The C031-XRD positions a disc working electrode below a polyimide window in an assembly made from PEEK and titanium. The catalog describes rapid opening for cleaning and either flow operation or syringe filling. Check the diffraction geometry, electrode position and instrument mounting together before specifying the disc material, reference electrode and counter electrode.

Specifications & ordering details

Use these parameters to define your requirement. The quotation confirms the exact supplied specification.

Material / system	PEEK and titanium; polyimide window
Catalog model	C031-XRD
Body materials	PEEK and high-purity titanium
Window material	PI / polyimide
Electrode-to-window distance	Less than 3 mm
Standard working electrode	5 mm glassy-carbon disc
Instrument and optical / beam geometry	Specify with your requirement.
Sample, electrode and window requirements	Specify with your requirement.
Connections and included accessories	Specify with your requirement.

Research applications

In-situ electrochemical XRD
Disc-electrode structural studies
Flow-cell diffraction measurements

Before you order

Provide the XRD instrument, beam geometry and mounting space.
Specify the working disc material and diameter.
Confirm the window, flow fittings and included electrodes.

Product documents

View the source catalog for this offering. Share your instrument model, configuration and application to request the relevant specification or material documentation.

View Electrochemistry, Flow & MEA Systems — page 13 ↗Download PDF

Selection questions

How do I check the instrument interface?

Share the instrument make and model, sample geometry, optical or beam path, mounting arrangement and drawings. The cell and instrument interfaces must be reviewed together.

Which experimental conditions are needed?

Specify temperature, pressure, atmosphere or electrolyte, and electrical connections. Confirm sample access, windows, fittings and accessories for the selected method.
