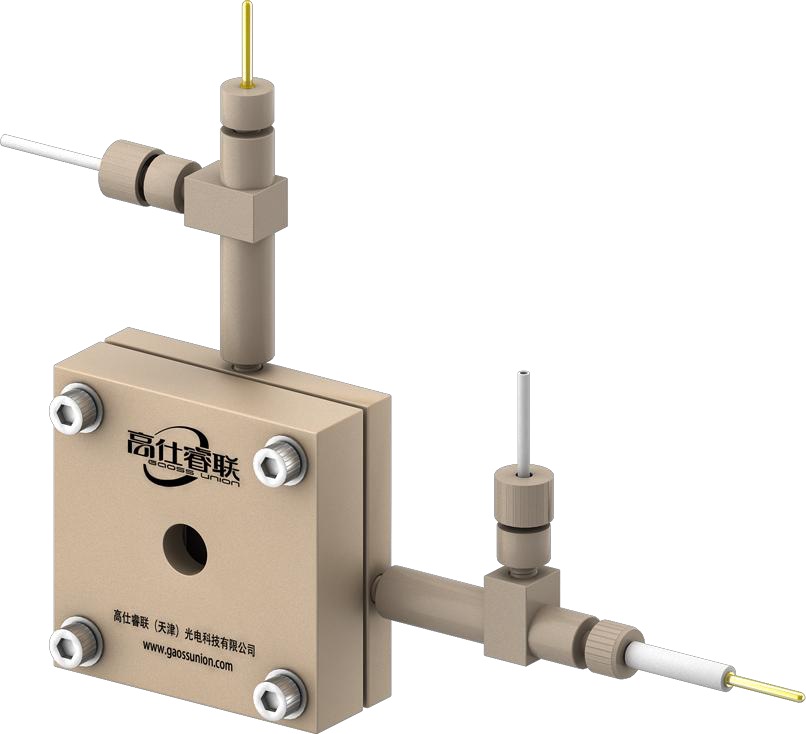

Infraredlight Transmission IR Cell

Product overview

The catalog model Infraredlight uses transmission-mode infrared measurement through a thin solution layer. Its PEEK body includes gas inlet and outlet connections, with calcium fluoride identified as the infrared-window material. Specify the instrument beam geometry and complete electrode arrangement when requesting this cell; the platinum components and their electrochemical roles must be confirmed for the laboratory method.

Specifications & ordering details

Use these parameters to define your requirement. The quotation confirms the exact supplied specification.

Material / system	PEEK body; calcium-fluoride IR window
Catalog model	Infraredlight
Measurement mode	Infrared transmission
Body material	PEEK
IR window material	Calcium fluoride
Solution-layer thickness	0.5 mm
Working electrode	Platinum mesh
Gas interfaces	Inlet and outlet ports
Instrument and optical / beam geometry	Specify with your requirement.
Sample, electrode and window requirements	Specify with your requirement.
Connections and included accessories	Specify with your requirement.

Research applications

Transmission spectroelectrochemistry
Thin-layer infrared measurements
Gas-fed infrared cell studies

Before you order

Confirm the transmission optical path and beam clearance.
Specify the solution layer and electrolyte compatibility.
Confirm working, counter and reference electrodes with the quotation.

Product documents

View the source catalog for this offering. Share your instrument model, configuration and application to request the relevant specification or material documentation.

View Electrochemistry, Flow & MEA Systems — page 12 ↗Download PDF

Selection questions

How do I check the instrument interface?

Share the instrument make and model, sample geometry, optical or beam path, mounting arrangement and drawings. The cell and instrument interfaces must be reviewed together.

Which experimental conditions are needed?

Specify temperature, pressure, atmosphere or electrolyte, and electrical connections. Confirm sample access, windows, fittings and accessories for the selected method.
