Product overview

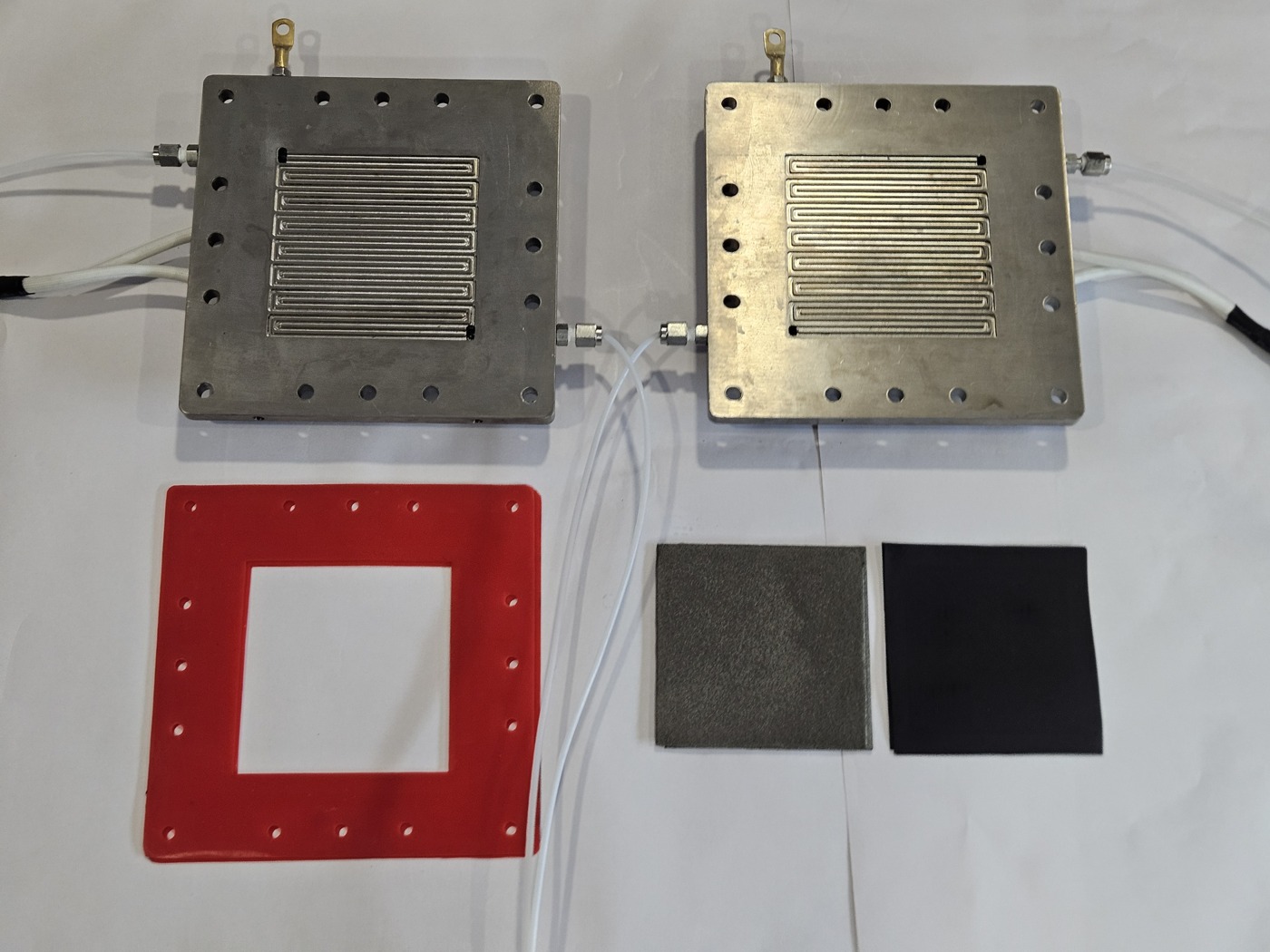

The CZ architecture places the cathode catalyst layer directly against the membrane. Titanium flow-field plates and compatible electrode media are selected with the AEM, PEM or CEM membrane package, electrolyte, seals and compression. Single-cell and multi-cell configurations are quoted around electrical duty and manifolds. CF liquid-chamber volumes do not describe the CZ zero-gap cathode.
Specifications & ordering details
Use these parameters to define your requirement. The quotation confirms the exact supplied specification.
| System / method | CO₂ reduction research hardware |
|---|---|
| Flow-field plates | Titanium |
| Active dimensions | 1 × 1 / 2 × 2 / 3 × 3 / 5 × 5 / 10 × 10 cm |
| Active areas | 1 / 4 / 9 / 25 / 100 cm² |
| Architecture | Zero-gap, MEA compatible |
| Membrane choices | AEM / PEM / CEM; chemistry-specific package |
| Stack option | Configured cell count and manifolds; CZ-25-S5 is an example five-cell code |
| Experiment or process requirements | Specify with your requirement. |
| Operating range and sample / DUT dimensions | Specify with your requirement. |
| Interfaces, options and included accessories | Specify with your requirement. |
Research applications
- Zero-gap CO₂ reduction
- MEA and membrane research
- Cell-to-stack development
Before you order
- State active area, cell count and electrical duty.
- Specify membrane, catalyst/ionomer, electrode media and electrolyte.
- Confirm manifolds, thermal requirements and supplied accessories.
Product documents
View the source catalog for this offering. Share your instrument model, configuration and application to request the relevant specification or material documentation.
View CO₂RR Flow Cells & Workstations — page 3 ↗Download PDFSelection questions
How do I check the instrument interface?
Share the instrument make and model, sample geometry, optical or beam path, mounting arrangement and drawings. The cell and instrument interfaces must be reviewed together.
Which experimental conditions are needed?
Specify temperature, pressure, atmosphere or electrolyte, and electrical connections. Confirm sample access, windows, fittings and accessories for the selected method.
