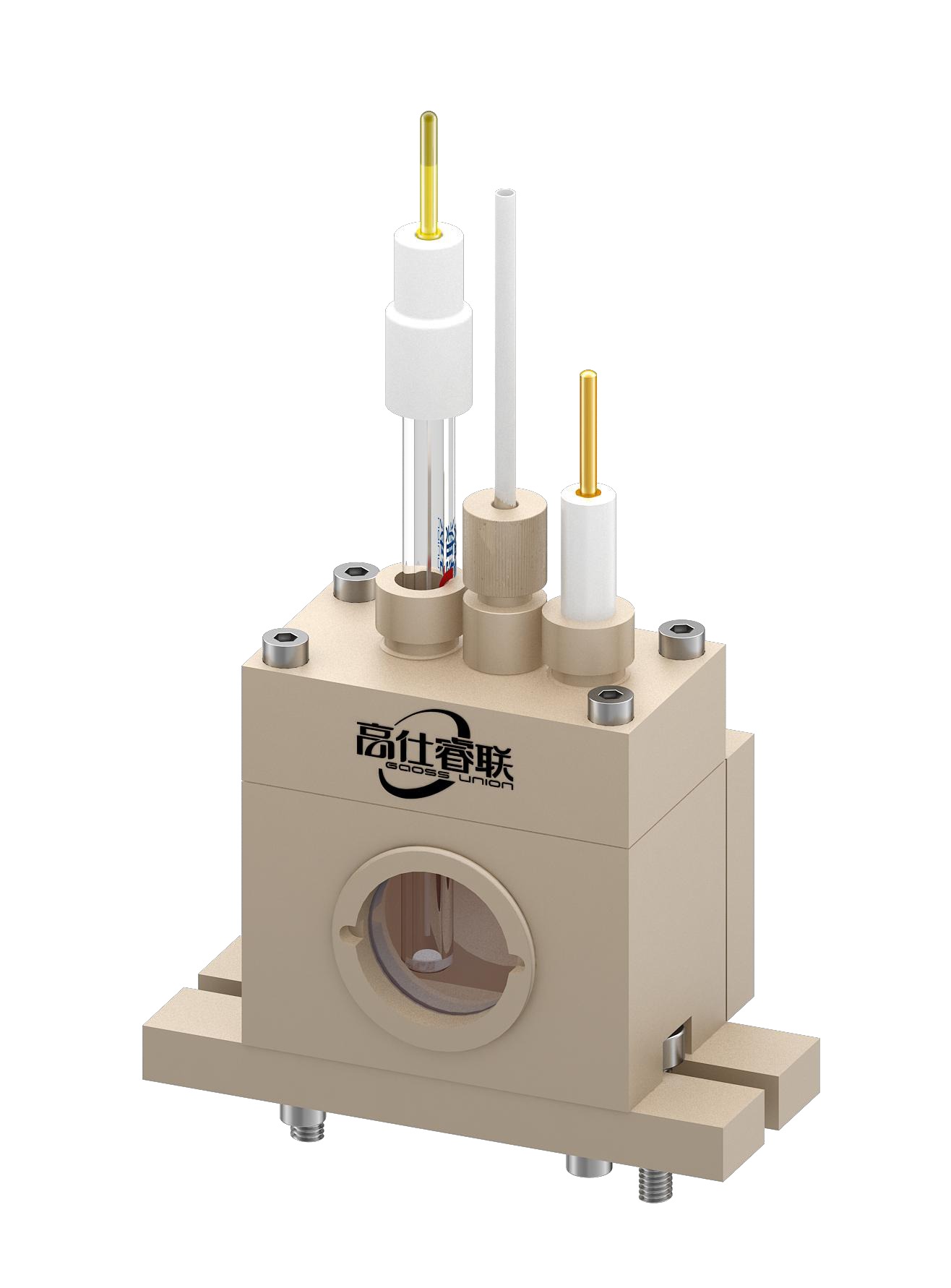

UV2600-1 Single-Chamber UV Electrochemical Cell

Product overview

The UV2600-1 is the single-chamber configuration in the approved SSI UV cell range. The catalog identifies a PEEK body, sapphire optical window and ITO working electrode. It names the Shimadzu UV2600 spectrophotometer as the intended instrument interface; confirm the actual sample compartment and optical alignment before ordering. This is a cell configuration, not a bundled spectrophotometer.

Catalog model options

Compare the individual catalog configurations and specify the complete model in your enquiry.

UV2600-2 H-Type UV Electrochemical Cell — An H-type dual-chamber UV electrochemical cell with a replaceable diaphragm and gas ports on the working chamber.

Specifications & ordering details

Use these parameters to define your requirement. The quotation confirms the exact supplied specification.

Material / system	PEEK body; sapphire window
Catalog model	UV2600-1
Cell configuration	Single chamber
Cell body	PEEK
Window	Sapphire glass
Working electrode	ITO
Reference electrode interface	6 mm diameter standard electrode
Counter electrode options	Platinum wire or graphite rod
Catalog instrument reference	Shimadzu UV2600; interface confirmation required
Active area and flow-field design	Specify with your requirement.
Plate / current-collector materials	Specify with your requirement.
Connections and included accessories	Specify with your requirement.

Research applications

In-situ UV spectroelectrochemistry
Optical studies with ITO working electrodes
Electrode-response measurements

Before you order

Confirm the spectrophotometer model and sample-compartment dimensions.
Specify the 6 mm reference electrode and counter-electrode option.
Confirm optical alignment, seals and included electrodes.

Product documents

View the source catalog for this offering. Share your instrument model, configuration and application to request the relevant specification or material documentation.

View Electrochemistry, Flow & MEA Systems — page 17 ↗Download PDF

Selection questions

What should a custom enquiry include?

For UV2600-1 Single-Chamber UV Electrochemical Cell, provide the active area, sample or electrode geometry, materials, interfaces and the operating conditions. Include drawings and identify every component in the assembly scope.

Are electrodes, membranes and accessories included?

Specify the parts required. Hardware, membranes, electrodes, gaskets, fittings and instruments should be identified separately in the quotation.
